Product Features

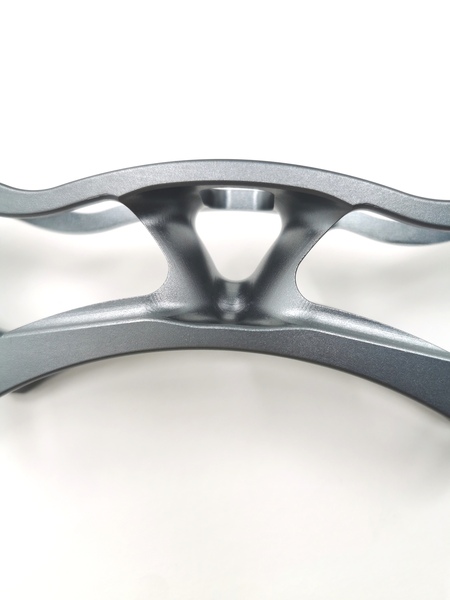

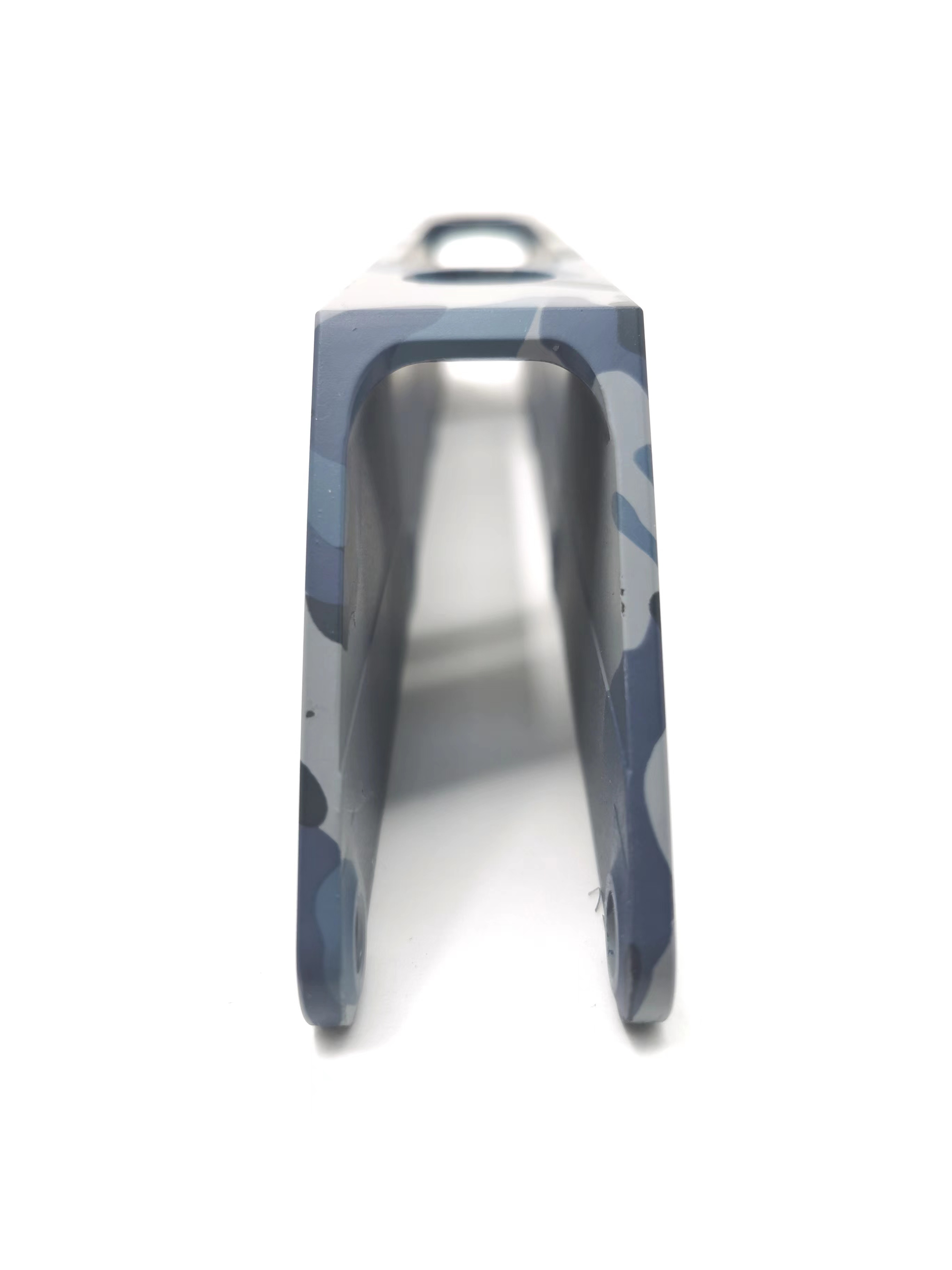

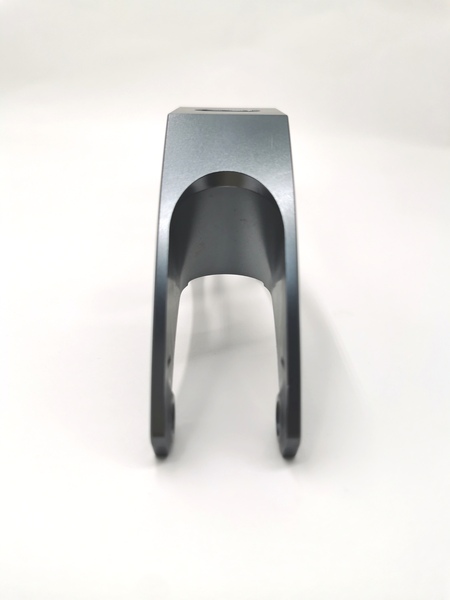

Aluminum Frame Body.
Extruded 6061 T6 hardened aluminum, CNC milled into its final shape.
ALL 90mm skate frame weights less then 155 grams,lighter is better.
Pair of frames with 8 axles, 8 aluminumspacers.
Treated with a surface-hardening anodized finish.
Universal Frame System (UFS) bolt configuration to fit all corresponding boots.
Recommended for flat-rockered setups.
One Way Axles - Version 2.
Two spare axles included in each package.
Product Details
Advantages of UFS frames 80mm
The CNC turned, Black Oxide Steel Alloy screw directly into frame walls, reducing weight and complexity.
10mm deep tool cavity helps to keep bolt heads from stripping with regular use.
A nylon patch is bonded to the threads, adding friction to resist loosening from vibration.
UFS Skates Frame Size
255mm wheelbase: size S, Recommended for US 6-9 / EU 38-42.
275mm wheelbase: size L, Recommended for US 9-12 / EU 42-45.
Specifications of inline racing frames
| Specifications | 4x90/4X100/4x110 |
| Material | AL6061/AL7003/AL7005/AL7050/AL7075/Magnesium alooy |
| Surface Handling | Anodzing/color coating/voccum plating etc |
| Logo | laser printing, screen printing, etc. |
| Color | According to customer' requirement |
| MOQ | 3,00prs |
